Getac UX10

Fully rugged computing power, anywhere you need it

A versatile and portable tablet fully ready to deliver digital transformation in environments where rugged performance is required.

Industries using UX10

EXCEPTIONALLY ADAPTABLE RUGGED TABLET

Fast, tough, and adaptable, the UX10 G-RuggedPro™ tablet offers an exceptionally rugged computing experience. Featuring a 12th Generation Intel^® i7/i5 processor and Thunderbolt™ 4, the IP66-certified UX10 delivers great performance with uncompromising security and durability, while an optional hard handle lets you conveniently carry it wherever it is needed. For total security in authenticating users, the UX10 has an optional integrated fingerprint reader, smart card reader, magnetic stripe reader, RFID reader, and Windows Hello face-authentication camera, while its detachable keyboard with retractable hard handle further enhances worker productivity.

Industry 4.0, powered by Intel

THE CONNECTED TABLET

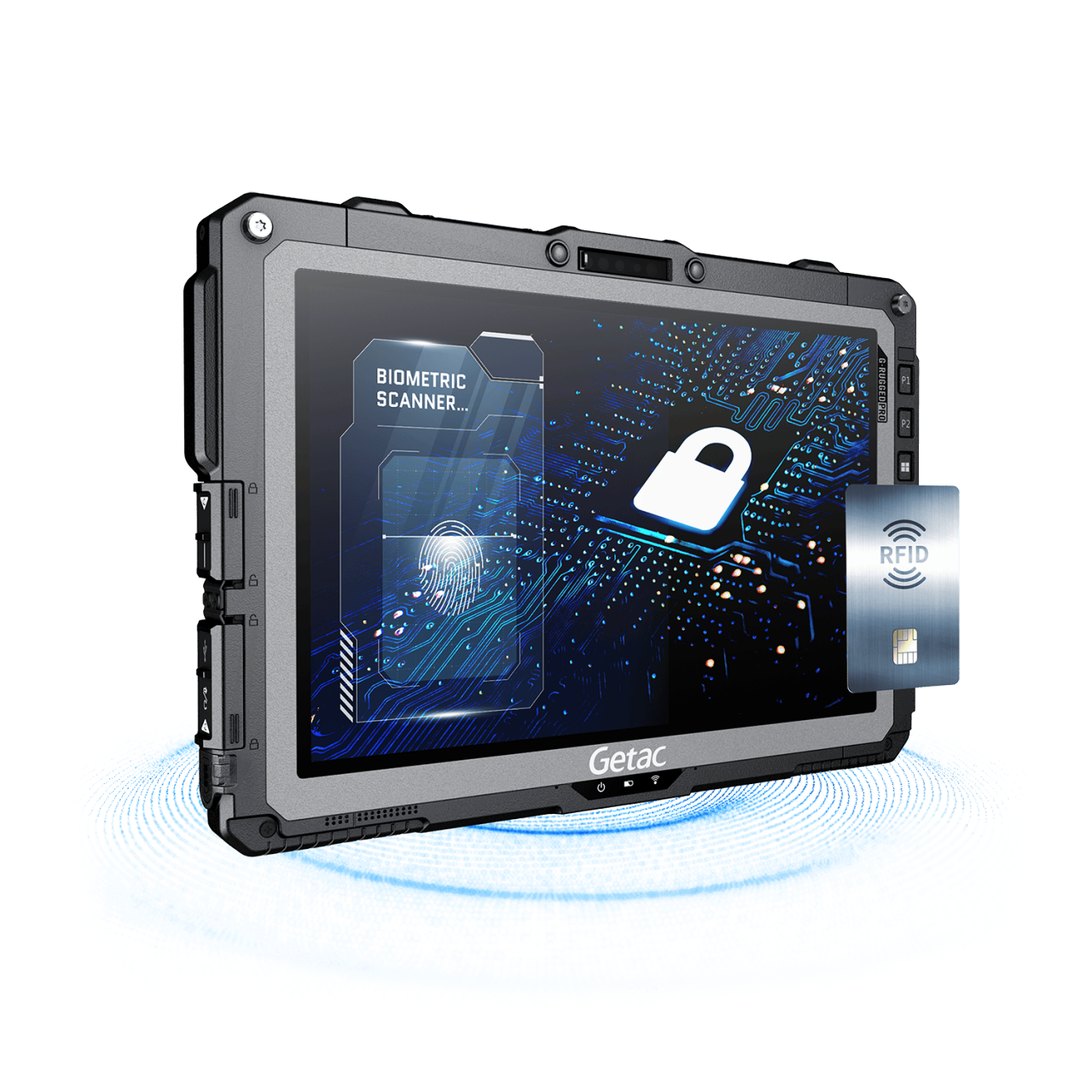

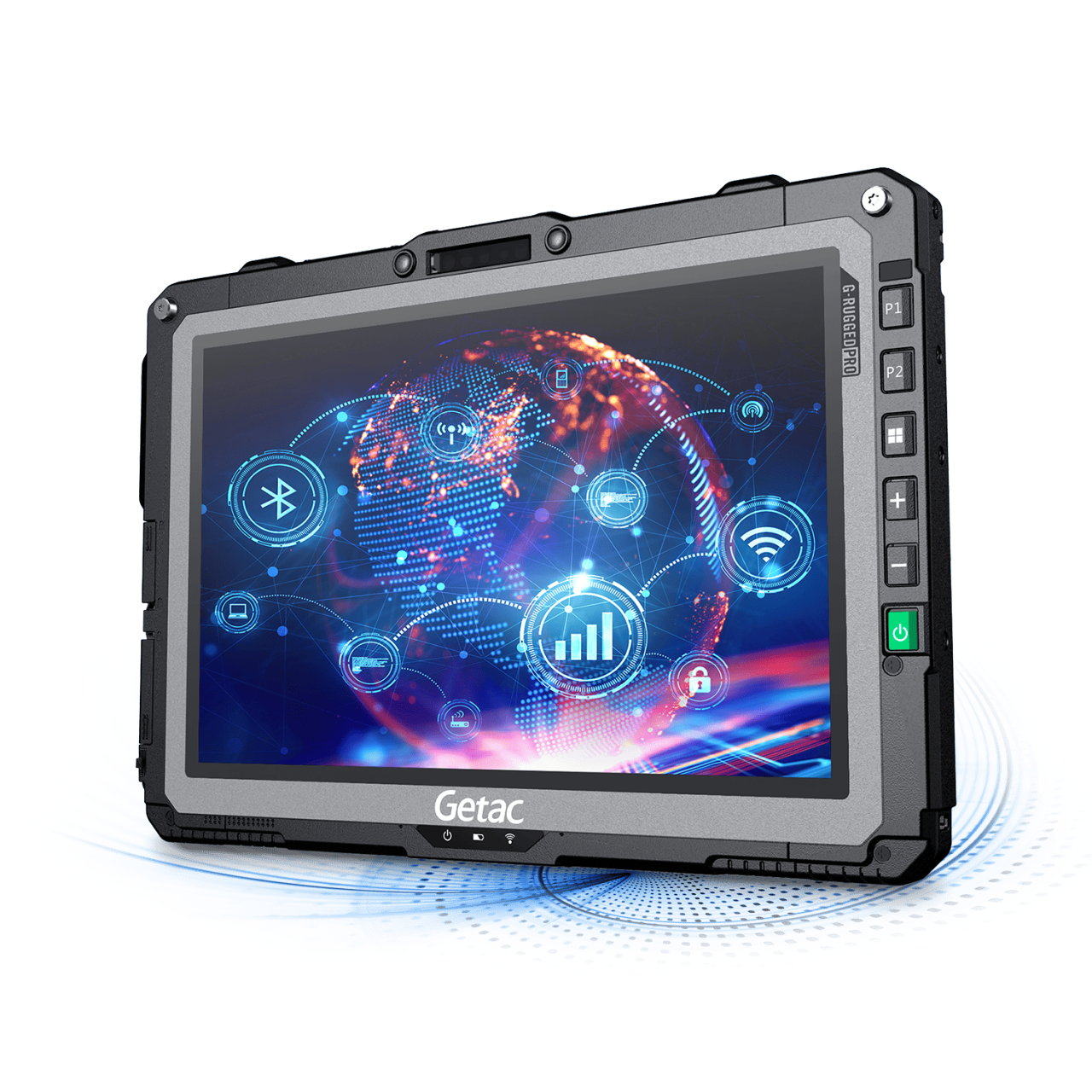

Supporting seamless digital transformation, the UX10 offers digital connectivity through Bluetooth 5.3, Wi-Fi 6E AX211, and optional 4G LTE, ensuring a stable connection even in highly congested environments. An optional RS232 port supports legacy equipment, and an optional RFID reader allows information feedback into the management system. All these functionalities ensure that the UX10 stays connected wherever you need it, whether indoors or outdoors.

THE ‘ALWAYS-ON’ TABLET

In a world where devices must work 24/7, 365 days a year, power-up continuity is essential, and for portable devices, that means a focus on battery configuration. The UX10 offers a range of battery configurations and options, including an optional high-capacity battery and an optional bridge battery that ensures a ‘hot swap’ capability. In effect, you need never power-down the UX10*, making it an ideal solution if you need a device that can be pooled among workers or utilised across multiple work shifts.

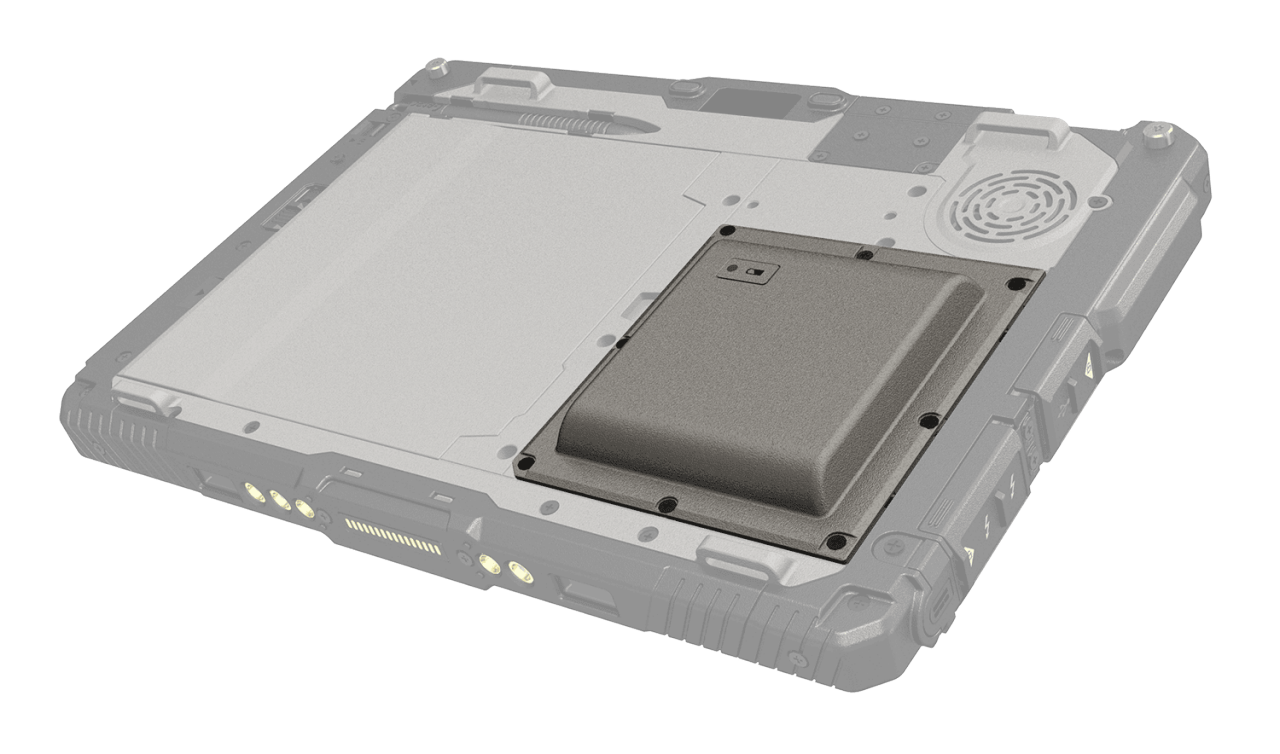

*The optional bridge battery can keep the tablet alive for roughly 2 minutes without any main battery in the bay, providing users enough time to swap a fresh battery without ever shutting down their devices.

THE USABLE-IN-ALL CONDITIONS TABLET

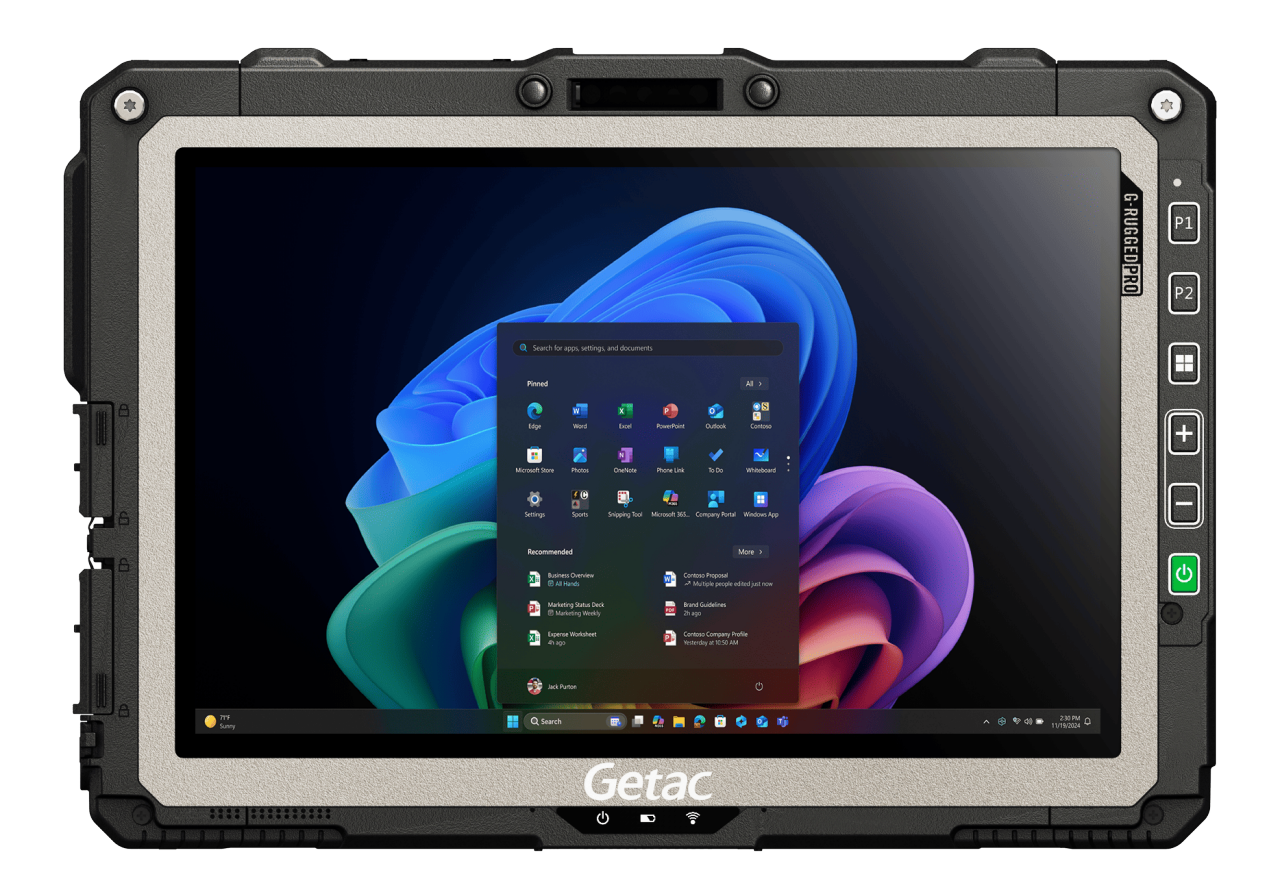

Paired with its superior drop resistance and temperature tolerance, the UX10’s LumiBond screen ensures usability in all conditions. 1000 nits of brightness make the display readable even in sunlight, while its rain and glove touch capability guarantee visibility and productivity even in many extreme conditions.

THE EVEN MORE RUGGED TABLET

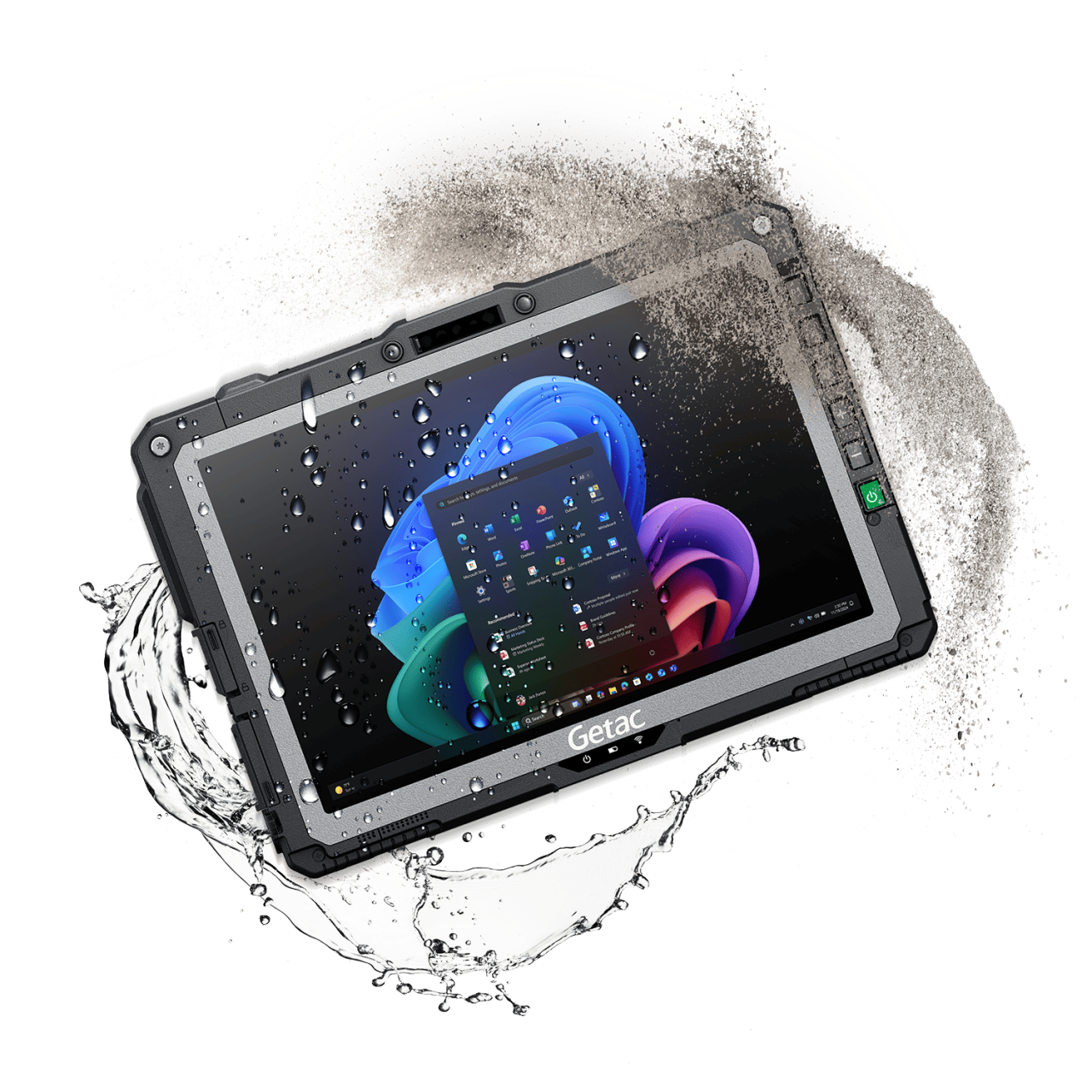

The UX10 is a new level of ruggedness, certified with the IP66 and military-grade MIL-STD 810H standards. It resists water, dust, salt, vibration, and will withstand temperatures from -29°C to +63°C (-20°F to 145°F), and a 6-foot (1.8m) drop while operating.

DESIGNED FOR INFECTION PREVENTION

Designed with Infection prevention in mind, the UX10 is also available with sealed buttons allowing frequent cleaning to support infection prevention of medical healthcare professionals.

SUCCESS STORIES

The benefits of Digital China and Getac’s innovative partnership have already proven substantial, including inbound and outbound time reductions of 150 minutes and 60 minutes, respectively, average inbound/outbound documentation reductions of 70%, and near-100% inbound rate accuracy. “Providing our customers with comprehensive smart solutions is our business vision,” noted the general manager of Digital China’s Internet of Things department, “and Getac’s rugged UX10, F110, and T800 tablets deliver exactly what they need. Not only do they offer extraordinary durability and reliability, they also integrate perfectly with our warehouse logistics software and radio frequency identification (RFID) scanning solutions, guaranteeing exceptional performance for our customers.” In short, Digital China’s collaboration with Getac has already delivered dramatic benefits, addressing a host of complicated real-world warehouse pain points to enable Digital China to provide even better service to their millions of customers.

Getac’s UX10 Rugged Tablets Power Digital China’s State-of-the-Art Warehouse Automation Solutions

The Kreis (district) of Borken in Germany carries out around 22,000 rescue missions per year, including 16,000 ambulance transports and more than 5,000 emergency doctor missions. The fully rugged UX10-IP tablet impresses them not only with its speed and extreme durability, which enables reliable work, (even after drops or other heavy impacts), but also with the performance of its batteries, which can be constantly charged via Havis docking stations. When away from the docking stations, the device’s long battery life guarantees stable, reliable operation over long periods of time, even when the units are heavily used. Meanwhile, when calls are transmitted to an ambulance via the control centre, the device’s robust connectivity allows the response team to receive all the recorded information and patient data directly on their UX10-IP devices. As one of the district’s emergency responders put it, “The device is incredibly practical, the batteries last longer than a day. It runs even faster and smoother than previous devices and is therefore ideal for our purposes. Every time we go out on a call, we notice that the UX10-IP is even more powerful and allows faster data transfers for our emergency services.” With the fully robust Getac UX10-IP tablet, the district’s emergency medical personnel are now optimally equipped for patient care and can manage all the mission-critical data required with maximal efficiency. In short, the UX10-IP is helping the district set a new course for the digital future of its rescue services.

Kreis Borken: Ensuring Robust Reliability for Life-Saving Missions with Getac UX10-IP

Getac UX10 Features

12th Gen Intel^® Core™ Processor

8GB RAM/256 GB Storage

Wi-Fi 6E AX211 & Bluetooth 5.3

Thunderbolt™ 4

Dedicated GPS

Brilliant Display

Industries Using UX10

Mission-critical COTS computing that delivers high powered processing and reliability in operational environments.

Defense

Ambulance, Fire & Rescue and Policing applications

Public Safety

Smart Meter Reading and Installation, On-site Safety, Utility Asset Management, Workforce Management for Utilities, Mobile GIS, Surveying and Mapping

Utilities

Railroad Management, Airport Management, Port Management, Long-haul Delivery Fleet Management, Warehouse Materials Handling

Transportation & Logistics

Industrial Programming and Robotic Control, Facility management, Compliance and Inspections, Workforce Management, Inventory and Warehouse Management, Factory Automation and Plant Monitoring, EAM and CMMS Solutions.

Industrial Manufacturing

Mining and Forestry applications

Natural Resources

Remote Support, Asset Management, Field Data Analysis, Workplace Safety

Oil & Gas

View All Industries

Beyond Expectations.

Our new Bumper-to-Bumper fully rugged warranties go beyond the expected to protect your productivity.

3-Year Warranty.

Accidents can take your equipment out of service when you least expect it, especially in a rugged environment, which can cause costly equipment downtime. That is why Getac has introduced accidental damage as standard under our Bumper-to-Bumper warranty, to help minimize your enterprise IT costs. Bumper-to-Bumper is your hassle-free guarantee. That means you can depend on us to have your unit back in service within days.

Standard 3 years Bumper-to-Bumper

For full details of the warranty protection, see the Terms and Conditions.

*Images shown are for reference only. Actual product may vary due to product enhancement.

Generation	G3
Operating System	Windows 11 Pro
Mobile Computing Platform	Intel^® Core™ i5-1235U Processor Max. 4.4GHz with Intel^® Turbo Boost Technology - 12MB Intel^® Smart Cache Platform options: Intel^® Core™ i5-1245U vPro^® Processor Max. 4.4GHz with Intel^® Turbo Boost Technology - 12MB Intel^® Smart Cache Intel^® Core™ i7-1255U Processor Max. 4.7GHz with Intel^® Turbo Boost Technology - 12MB Intel^® Smart Cache Intel^® Core™ i7-1265U vPro^® Processor Max. 4.8GHz with Intel^® Turbo Boost Technology - 12MB Intel^® Smart Cache Intel^® Pentium™ 8505 Processor Max. 4.4GHz with Intel^® Turbo Boost Technology - 8MB Intel^® Smart Cache
VGA Controller	Intel^® UHD Graphics
Display	10.1" Wide Viewing Angle TFT LCD WUXGA (1920 x 1200) Protection film 1,000 nits LumiBond display with Getac sunlight readable technology Capacitive multi-touch screen
Storage & Memory	8GB DDR4 Optional: 16GB / 32GB DDR4 256GB PCIe NVMe SSD Optional: 512GB / 1TB PCIe NVMe SSD
Keyboard	Power button 5 tablet programmable buttons
Pointing Device	Touchscreen - Capacitive multi-touch screen - Optional: Dual mode touchscreen (multi-touch and digitizer)
Expansion Slot	Optional (top side): 1D/2D imager barcode reader, or Serial port, or USB 3.2 Gen 1 Type-A port, or LAN port (RJ45) , or microSD or HF RFID reader ⁱ, or HDMI 2.0.ⁱⁱ Optional (right side): LAN port (RJ45) or Fingerprint readerⁱⁱⁱ Optional (back side): Smart card reader, or Bridge battery, or Bridge battery + Smart card reader ^iv
I/O Interface	FHD webcam x 1 ^v 8M pixels auto focus rear camera x 1 Audio in/out combo x 1 DC in Jack x 1 USB 3.2 Gen 2 Type-A x 1 Docking connector x 1 Thunderbolt™ 4 Type-C x 1 Optional: Windows Hello face-authentication camera (front-facing) x 1 ^v Optional: RF antenna pass-through for GPS, WWAN and WLAN
Communication Interface	Optional: 10/100/1000 base-T Ethernet Intel^® Wi-Fi 6E AX211, 802.11ax Bluetooth (v5.3) ^vi Optional: Dedicated GPS with L1/L5 ^ix Optional: 4G LTE mobile broadband with integrated GPS ^{vii, viii, ix, x} Optional: 5G Sub-6 with integrated GPS ^{vii, viii, ix} Dual SIM (Micro-SIM 3FF and e-SIM) ^{vii, viii}
Security Feature	TPM 2.0 Kensington lock Optional: Intel^® vPro^® Technology Optional: HF RFID reader ^i,ii Optional: Fingerprint reader ⁱⁱⁱ Optional: Smart card reader ^iv Optional: Windows Hello face-authentication camera (front-facing) ^v
Power	AC adapter (65W, 100-240VAC, 50/60 Hz) Li-ion battery (11.1V, typical 4200mAh; min. 4080mAh) x 1 Optional: High capacity Li-ion battery (10.8V, 9240mAh) x 1 Optional: Bridge battery ^iv
Dimension (W x D x H) & Weight	279 x 194.5 x 23.5mm (10.98" x 7.65" x 0.92") ^xi 1.22kg (2.68lbs) ^xi
Rugged Feature	MIL-STD-810H certified IP66 certified MIL-STD-461G certified ^xii Vibration & 6ft (1.8m) drop resistant ^xiii Optional: ANSI/UL 121201, CSA C22.2 NO. 213 (Class I, Division 2, Groups A, B, C, D) ^xiv
Environmental Specification	Temperature ^xv : - Operating: -29°C to 63°C / -20°F to 145°F - Storage: -51°C to 71°C / -60°F to 160°F Humidity: - 95% RH, non-condensing
Pre-installed Software	Getac Utility Getac Camera Getac Geolocation Getac Barcode Manager ^xvi Getac Driving Safety Utility (trial version) Getac KeyWedge Barcode Reader Utility (trial version) Optional: Absolute Persistence^®
Optional software	Getac Driving Safety Utility Getac KeyWedge Barcode Reader Utility Getac Device Monitoring System (GDMS) Getac VGPS Utility ^xvii

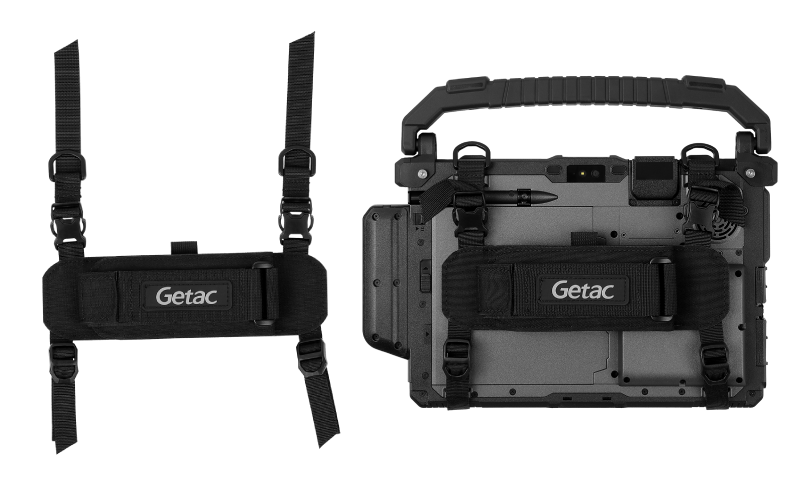

Accessories	Battery (11.1V, typical 4200mAh; min. 4080mAh) AC adapter (65W, 100-240VAC) Capacitive stylus with tether Optional: Carry bag Folio case Battery (11.1V, typical 4200mAh; min. 4080mAh) High capacity Li-ion battery (10.8V, 9240 mAh) Multi-Bay charger (Dual-Bay) Multi-Bay charger (Eight-Bay) AC adapter (65W, 100-240VAC) AC adapter (90W, 100-240VAC) MIL-STD-461 AC adapter (90W, 100-240VAC) DC-DC vehicle adapter (120W, 11-32VDC) Digitizer pen with tether Capacitive stylus with tether Protection film Hard handle Rotating hand strap with kickstand Shoulder strap (2-point) Shoulder harness (4-point; handsfree) Detachable keyboard Vehicle cradle ^xviii Keyboard dock Vehicle dock ^xviii Office dock DS100 USB-C docking station 100W Type-C adapter
Bumper-to-Bumper Warranty	Accidents can take your equipment out of service when you least expect it, especially in a rugged environment, which can cause costly equipment downtime. That is why Getac has introduced accidental damage as standard under our Bumper-to-Bumper warranty, to help minimize your enterprise IT costs. Bumper-to-Bumper is your hassle-free guarantee. That means you can depend on us to have your unit back in service within days. Standard 3 years Bumper-to-Bumper

13.56MHz contactless HF RFID reader (ISO 15693, 14443 A/B, Mifare and FeliCa™ compliant).
1D/2D imager barcode reader, Serial port, USB 3.2 Gen 1 Type-A port, LAN port (RJ45), HF RFID reader, MicroSD and HDMI 2.0 are mutually exclusive options.
Fingerprint reader and LAN Port are mutually exclusive options.
Smart card reader, Bridge battery and Bridge battery + Smart card reader are mutually exclusive options.
FHD webcam and optional Windows Hello face-authentication camera (front-facing) are mutually exclusive options.
Bluetooth performance and connectable distance may be subject to interference with the environments and performance on client devices, users may be able to reduce effects of interference by minimizing the number of active Bluetooth wireless devices that is operating in the area.
One physical SIM card slot and one eSIM.
Network service may vary depending on local telecommunication providers.
Supports GPS, GLONASS, Galileo, BeiDou and QZSS. Only available in US, UK, EU, Australia and New Zealand.
Units with 4G LTE option come with an embedded SIM card slot.
Weight and dimensions vary from configurations and optional accessories.
MIL-STD-461 90W AC adapter sold separately.
Drop test results vary from configurations and optional accessories.
Available with limited configurations and environment conditions.
Tested by an independent third-party test lab following MIL-STD-810H.
Available when barcode reader option is selected.
Models require either embedded or standalone GPS module.
Gamber Johnson and Havis vehicle docks are e-mark certified.
