Artificial Intelligence (AI) enables automated license plate recognition (LPR) from up to 65 feet away, enabling faster tracking down of vehicles and smoother, safer driving.

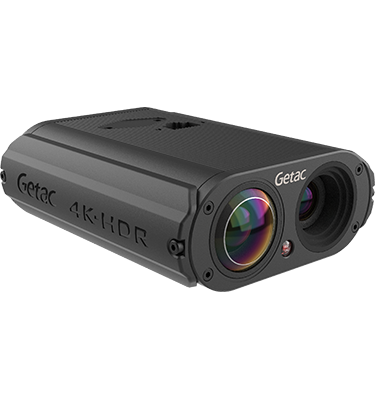

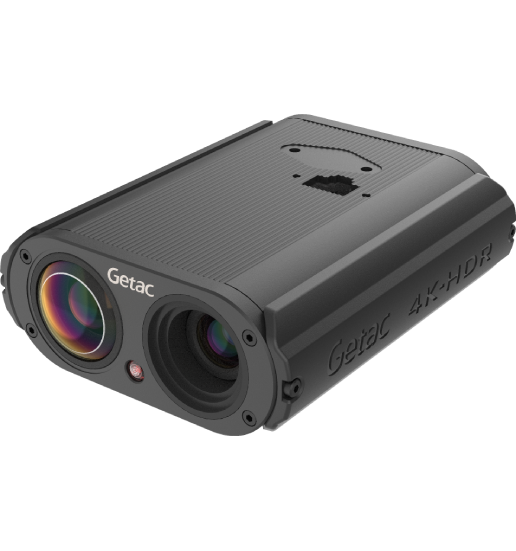

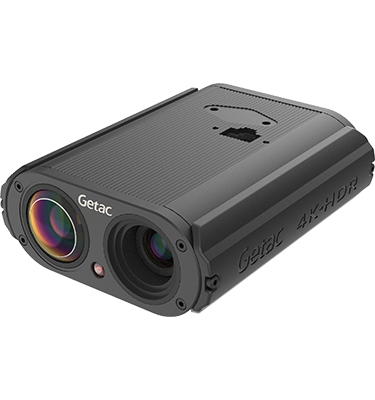

Both the wide-angle and standard camera feature up to 4K Ultra HD resolution with high dynamic range (HDR) encoding for clear detailed images in any ambient lighting.
A wide field of vision helps keep traffic stops and other events entirely on camera, while providing a broader view of what’s happening in a scene’s surroundings.
Both cameras deliver superb low-light performance with minimal visual noise in dim, ambient, or indirect lighting.
Specification subject to change. Custom options are available based on customer specifications.

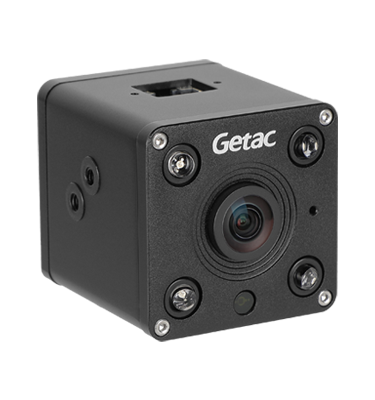

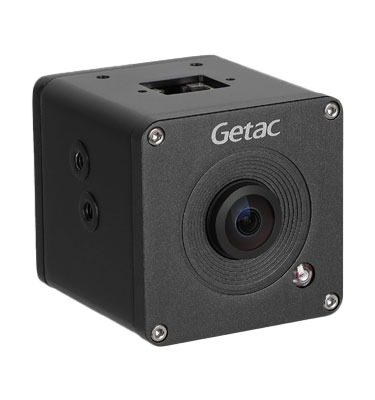

| SPECIFICATIONS |  ZeroDark FHD Camera |  ZeroDark FHD Infrared Backseat Camera |  ZeroDark 4K UltraHD Dual Lens Camera | |
|---|---|---|---|---|
| Single Cam | Single Cam | Left - Camera 1 | Right - Camera 2 | |
| Aperture | F2 | F2 | F2 | F2 |
| Focal Length | 2.6mm | 2.6mm | 3.2mm | 7.8mm |
| Low-light Capability | 0.05lux @ Color | 0.00lux (IR LED On), IR: Built-In IR LEDs (4ea) | 0.05lux @ Color | 0.05lux @ Color |
| Exposure | Dual Exposure, HDR technology | Dual Exposure, HDR technology | WDR technology | WDR technology |
| Dimensions (W x D x H) | 46 x 48 x 46mm (1.81” x 1.89” x 1.81”) | 46 x 48 x 46mm (1.81” x 1.89” x 1.81”) | 83 x 100 x 34 mm (3.27” x 3.94” x 1.34”) | |
| Weight | 184g (0.41lbs) | 184g (0.41lbs) | 281g (0.62lbs) | |
| FOV (Field of view) | 120° Horizontal / 146° Diagonal | 120° Horizontal / 146° Diagonal | 133° Horizontal / 150° Diagonal | 53° Horizontal / 59° Diagonal |
| Position | Fixed | Fixed | Fixed | Fixed |
| View Type | Panoramic | Panoramic | Panoramic | Normal View for ALPR |
| LUX | 0.05lux @ Color | 0.05lux @ Color | 0.05lux @ Color | 0.05lux @ Color |
| Network | Power over Ethernet (POE) | Power over Ethernet (POE) | Power over Ethernet (POE) | |
| Video Output Format | H.264 | H.264 | H.264, H.265 | |
| Video Output Resolution | 1920×1080 (1080P), 1280×720 (720P), 768x432 (D1) | 1920×1080 (1080P), 1280×720 (720P), 768x432 (D1) | 3840x2160 (UltraHD), 2560x1440 (QuadHD), 1920×1080 (1080P) | |
| Video Output Frame Rate | 30 fps | 30 fps | 30 fps, 15fps | |
| Connectivity Interface | Power over Ethernet (POE) | Power over Ethernet (POE) | POE, Ethernet | |
| Operating Temp | -30° to 60 °C (-22° to 140° F) | -30° to 60 °C (-22° to 140° F) | -30° to 60 °C (-22° to 140° F) | |
| Rugged | MIL-STD-810H | MIL-STD-810H | MIL-STD-810H | |

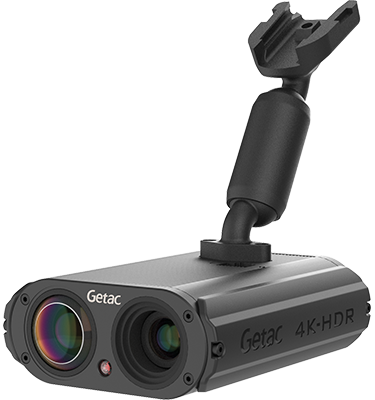

| Mount Options | Mounting Arm, Standard Mount | Standard Mount | Mounting Arm | |
