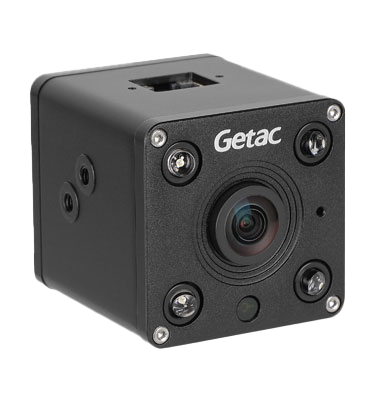

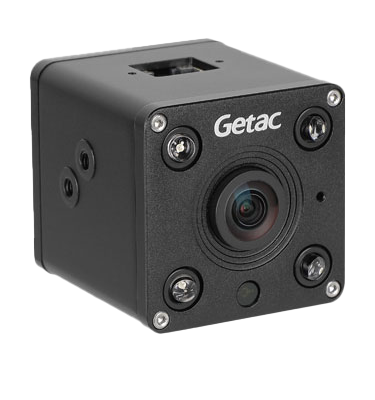

ZERODARK™ FHD INFRARED BACKSEAT CAMERA

In-Car Video

Industries using ZeroDark™ FHD InfraredBackseat Camera

Product Info
Tech Specs

Ensure your safety using ZeroDark™ infrared capabilities to easily monitor your backseat — and anyone in it. Working at night comes with the disadvantage of reduced visibility, especially when it comes to your cameras. The ZeroDark™ FHD Infrared Backseat Camera solves that problem so you can do your job, even in the darkest conditions. With the added infrared capabilities, ZeroDark™ allows you to see what you need to see — even the backseat.

ZeroDark™ FHD Infrared Backseat Camera Features

True HD

Using high-quality open standard formats, the ZeroDark™ FHD Infrared Backseat Camera delivers amazing clarity while lowering your storage costs.

Low-Light Recording

High-tech sensors and low-light recording features capture detail in as little as .00 lux illumination, so you can work with confidence.

Incredibly Small & Improved Performance

Smaller profile means less clutter in-car, and improved performance means crisper video capture.

Industries Using ZeroDark FHD Infrared Backseat Camera

Ambulance, Fire & Rescue and Policing applications

Public Safety

View All Industries

ZERODARK™ FHD INFRARED BACKSEAT CAMERA TECHNICAL SPECIFICATIONS

Aperture	F2
Focal Length	2.6mm
Low-light Capability	0.00lux (IR LED On), IR: Built-In IR LEDs (4ea)
Exposure	Dual Exposure, HDR technology
Dimensions (W x D x H)	46 x 48 x 46mm (1.81” x 1.89” x 1.81”)
Weight	184g (0.41lbs)
FOV (Field of view)	120° Horizontal / 146° Diagonal
Position	Fixed
View Type	Panoramic
LUX	0.05lux @ Color
Network	Power over Ethernet (POE)
Video Output Format	H.264
Video Output Resolution	1920×1080 (1080P), 1280×720 (720P), 768x432 (D1)
Video Output Frame Rate	30 fps
Connectivity Interface	Power over Ethernet (POE)
Operating Temp	-30° to 60 °C (-22° to 140° F)
Rugged	MIL-STD-810H
Mount Options	Standard Mount

Specification subject to change. Custom options are available based on customer specifications.

Compare Products

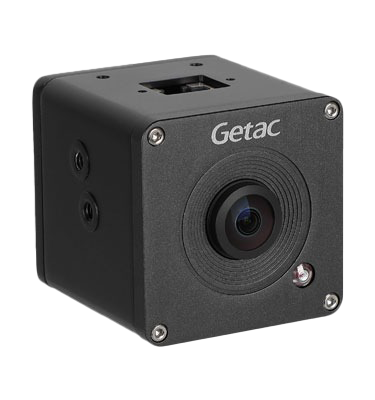

ZeroDark FHD Camera

ZeroDark FHD Infrared Backseat Camera

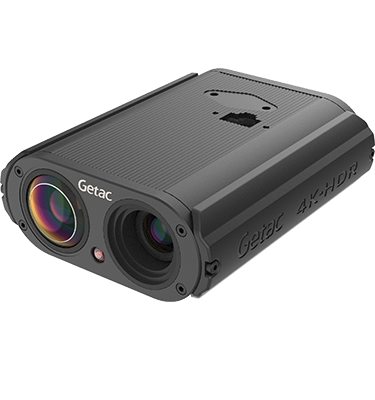

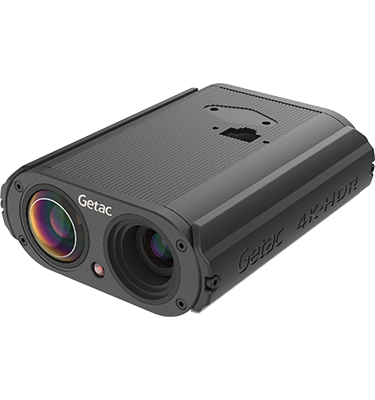

ZeroDark 4K UltraHD Dual Lens Camera

SPECIFICATIONS	ZeroDark FHD Camera	ZeroDark FHD Infrared Backseat Camera	ZeroDark 4K UltraHD Dual Lens Camera
	Single Cam	Single Cam	Left - Camera 1	Right - Camera 2
Aperture	F2	F2	F2	F2
Focal Length	2.6mm	2.6mm	3.2mm	7.8mm
Low-light Capability	0.05lux @ Color	0.00lux (IR LED On), IR: Built-In IR LEDs (4ea)	0.05lux @ Color	0.05lux @ Color
Exposure	Dual Exposure, HDR technology	Dual Exposure, HDR technology	WDR technology	WDR technology
Dimensions (W x D x H)	46 x 48 x 46mm (1.81” x 1.89” x 1.81”)	46 x 48 x 46mm (1.81” x 1.89” x 1.81”)	83 x 100 x 34 mm (3.27” x 3.94” x 1.34”)
Weight	184g (0.41lbs)	184g (0.41lbs)	281g (0.62lbs)
FOV (Field of view)	120° Horizontal / 146° Diagonal	120° Horizontal / 146° Diagonal	133° Horizontal / 150° Diagonal	53° Horizontal / 59° Diagonal
Position	Fixed	Fixed	Fixed	Fixed
View Type	Panoramic	Panoramic	Panoramic	Normal View for ALPR
LUX	0.05lux @ Color	0.05lux @ Color	0.05lux @ Color	0.05lux @ Color
Network	Power over Ethernet (POE)	Power over Ethernet (POE)	Power over Ethernet (POE)
Video Output Format	H.264	H.264	H.264, H.265
Video Output Resolution	1920×1080 (1080P), 1280×720 (720P), 768x432 (D1)	1920×1080 (1080P), 1280×720 (720P), 768x432 (D1)	3840x2160 (UltraHD), 2560x1440 (QuadHD), 1920×1080 (1080P)
Video Output Frame Rate	30 fps	30 fps	30 fps, 15fps
Connectivity Interface	Power over Ethernet (POE)	Power over Ethernet (POE)	POE, Ethernet
Operating Temp	-30° to 60 °C (-22° to 140° F)	-30° to 60 °C (-22° to 140° F)	-30° to 60 °C (-22° to 140° F)
Rugged	MIL-STD-810H	MIL-STD-810H	MIL-STD-810H
Mount Options	Mounting Arm, Standard Mount	Standard Mount	Mounting Arm
