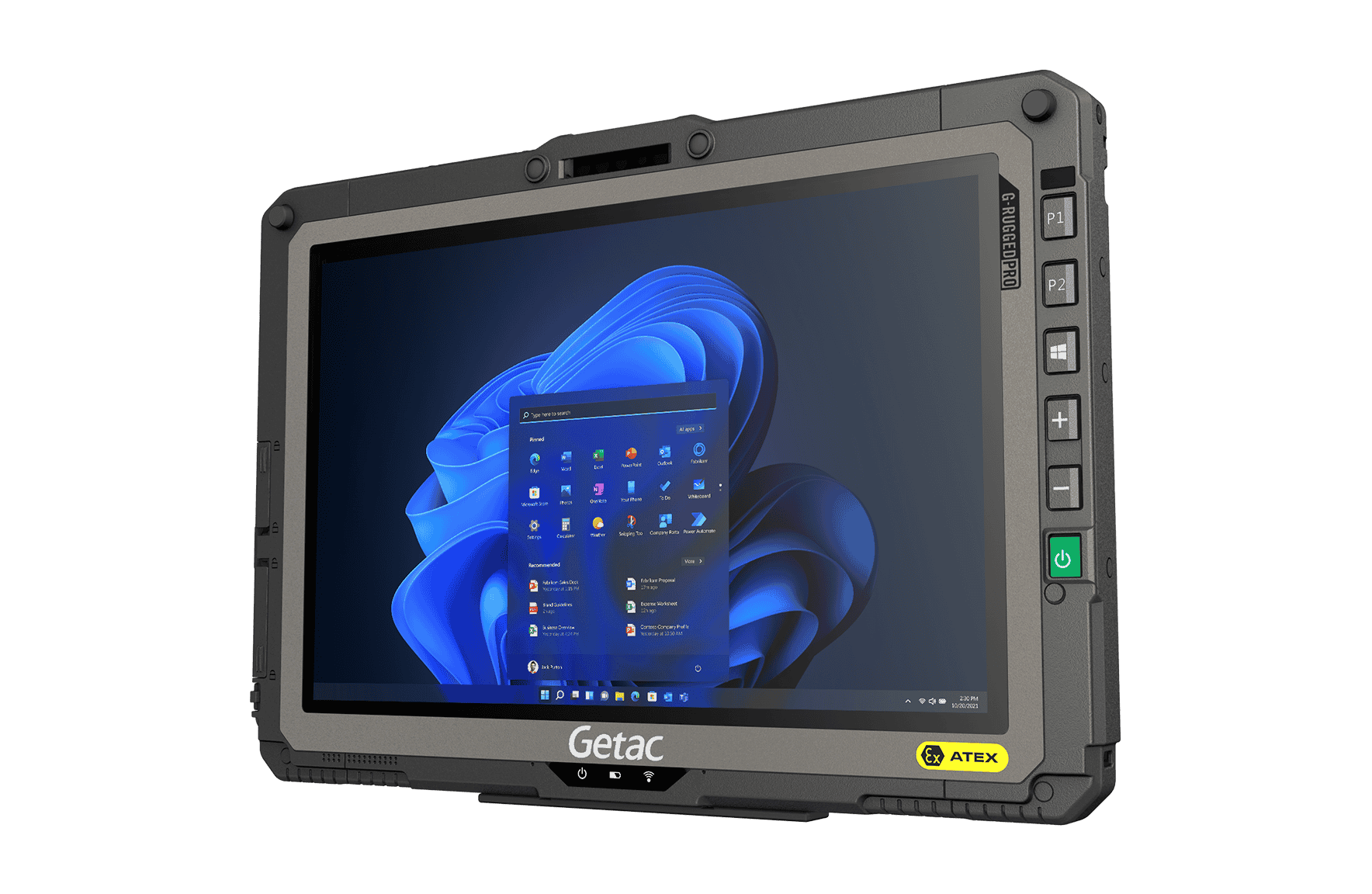

Getac UX10-EX

Rugged mobile power at your fingertips

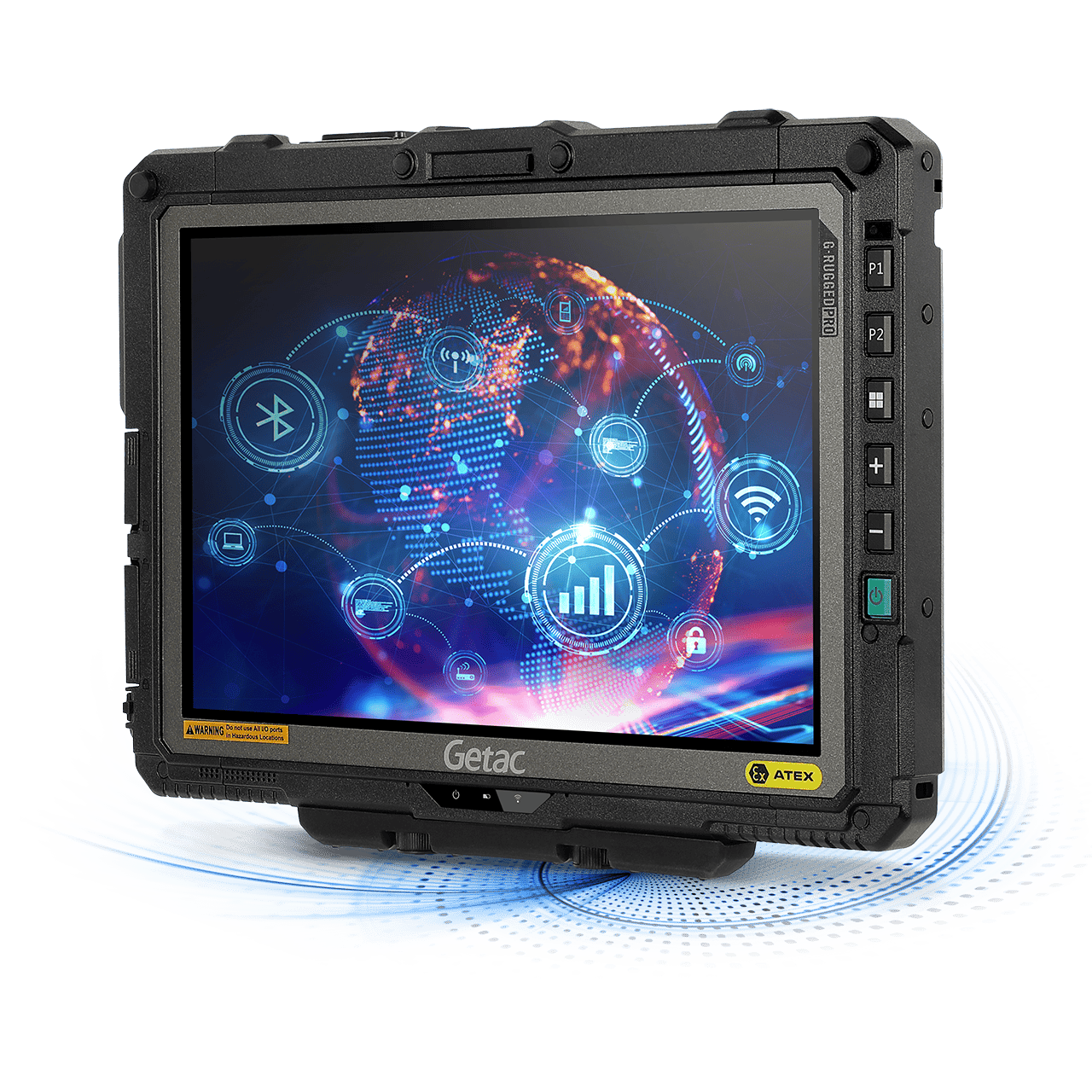

A versatile and portable ATEX and IECEx certified tablet ready to deliver digital transformation in potentially explosive environments where rugged performance is required.

Rugged mobile power at your fingertips

A versatile and portable ATEX and IECEx certified tablet ready to deliver digital transformation in potentially explosive environments where rugged performance is required.
getac

ATEX and IECEx Certified

Certified for hazardous locations, the UX10-EX fully rugged tablet offers optional ATEX and IECEx Zone 2/22 certification for use in potentially explosive atmospheres.

getac
getac

The versatility to drive cross-sector performance

The UX10-EX has been designed to deliver portable performance across a range of demanding industries such as Industrial manufacturing, Utilities and Oil and Gas.
getac

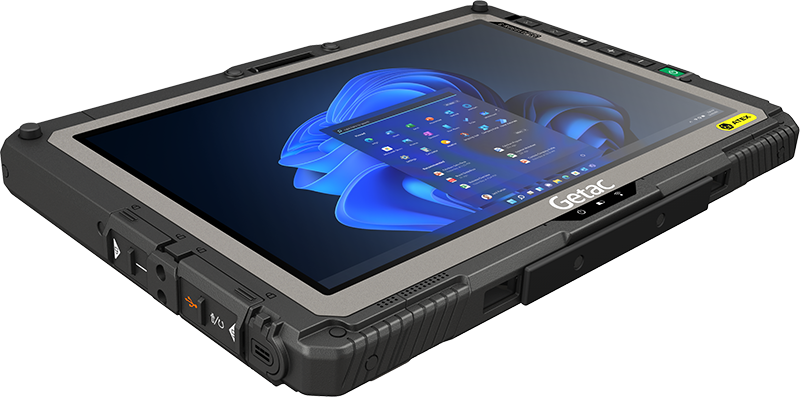

The go-anywhere, ultimately secure rugged tablet

An optional hard handle makes the UX10-EX easy to grip and carry, allowing you to take the computing power you require to the place it is most needed.
For total security in authenticating users, the UX10-EX has an RFID reader, and can also offer a Windows Hello face-authentication camera.

The connected tablet

The UX10-EX seamlessly supports digital transformation, offering digital connectivity through BT, WiFi, and optional 4G LTE. An optional RS232 port can support legacy equipment. An optional RFID reader allows information feed-back into the management system. All these functionalities ensure the UX10-EX stays connected no matter whether outdoors or indoors.
getac
getac
getac
getac

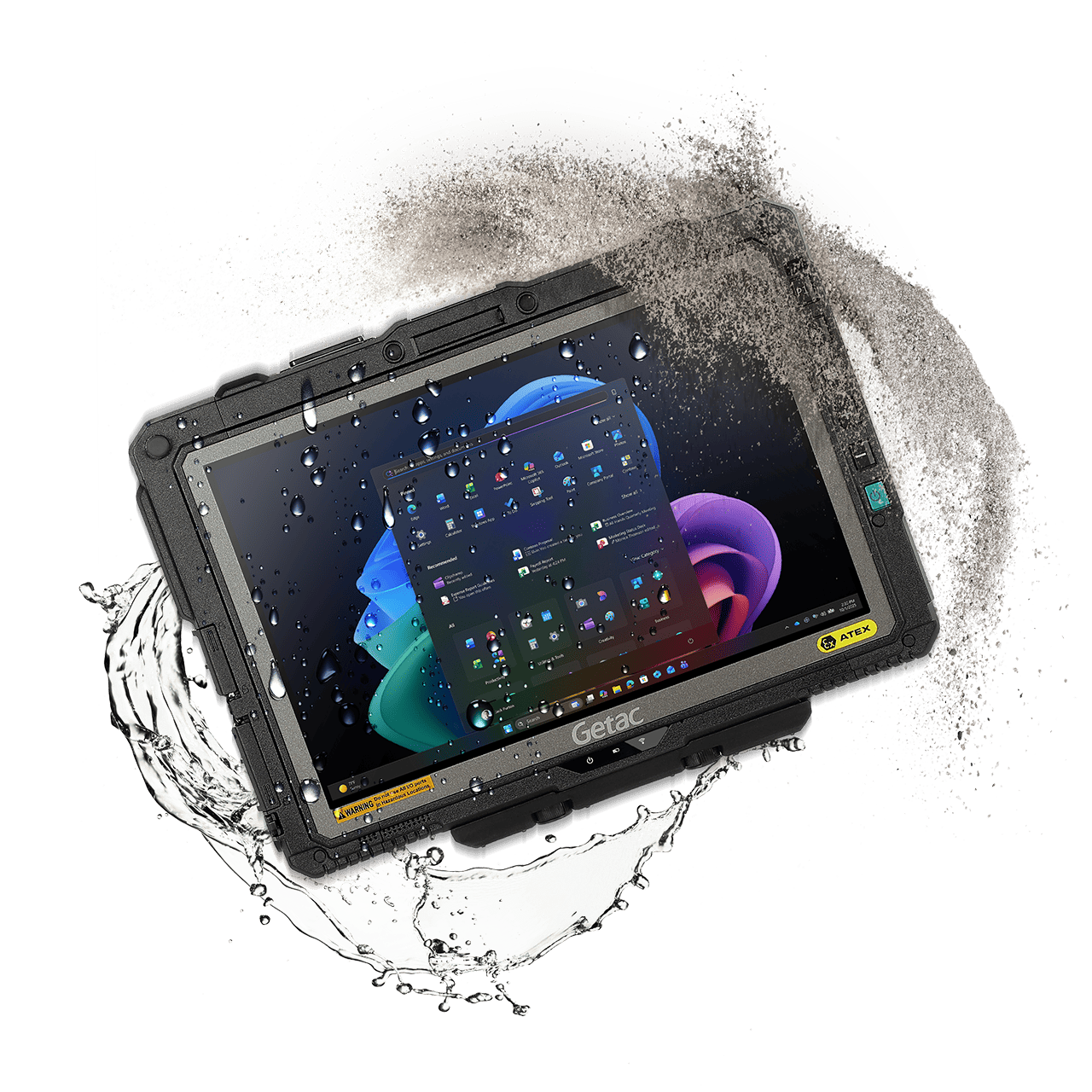

The usable-in-all conditions tablet

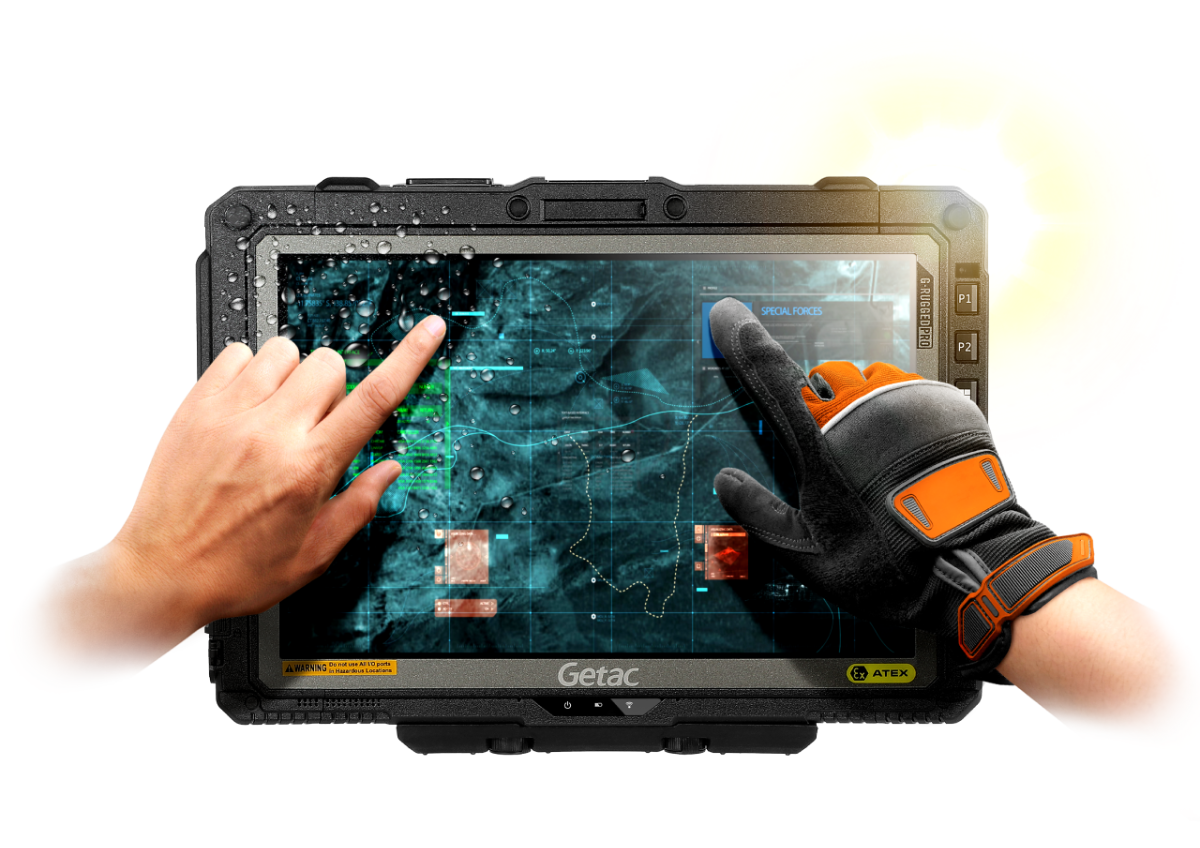

Drop resistance and temperature tolerance aside, the LumiBond screen ensures usability in all conditions. 1000 nits of brightness make the display readable even in sunlight, whilst rain and glove touch capability guarantee visibility and productivity in even the most extreme conditions.

Getac UX10-EX Features

Asset Management
Quad-core CPU



Asset Management
8GB RAM/ 256GB Storage



Asset Management
1000 nits FHD 10.1 inch LumiBond touchscreen display
Asset Management
Robust enough for a 6-feet drop



Asset Management
Operational between -21°C to +63°C



Asset Management
Multiple connectivity options and integrated GPS



Asset Management
A range of configurable factory installed options



Asset Management
3-year Bumper-to-Bumper warranty





Industries Using UX10-EX

Utilities
Transportation & Logistics
Industrial Manufacturing
Natural Resources
Oil & Gas

Beyond Expectations.

Our new Bumper-to-Bumper fully rugged warranties go beyond the expected to protect your productivity.

Industry-leading 3-Year Warranty.

Accidents can take your equipment out of service when you least expect it, especially in a rugged environment, which can cause costly equipment downtime. That is why Getac has included accidental damage as a part of our Bumper-to-Bumper warranty, to help minimize your enterprise IT costs. Bumper-to-Bumper is your hassle-free guarantee, supported by our European Collect & Return service, for rapid repair and return by Getac’s in-house experts. That means you can depend on us to have your unit back in service within days.

Standard 3 years Bumper-to-Bumper

For full details of the warranty protection, see the Terms and Conditions.

*Images shown are for reference only. Actual product may vary due to product enhancement.

UX10-EX TECHNICAL SPECIFICATIONS

Download PDF
Generation

G2-R
Operating System

Windows 11 Pro
Mobile Computing Platform

Intel® Core™ i5-10210U Processor 1.6GHz
Max. 4.2GHz with Intel® Turbo Boost Technology
- 6MB Intel® Smart Cache

Platform options:
Intel® Core™ i5-10310U, vPro® Processor 1.7GHz
Max. 4.4GHz with Intel® Turbo Boost Technology
- 6MB Intel® Smart Cache

Intel® Core™ i7-10510U Processor 1.8GHz
Max. 4.9GHz with Intel® Turbo Boost Technology
- 8MB Intel® Smart Cache

Intel® Core™ i7-10610U vPro® Processor 1.8GHz
Max. 4.9GHz with Intel® Turbo Boost Technology
- 8MB Intel® Smart Cache
VGA Controller

Intel® UHD Graphics
Display

10.1" Wide Viewing Angle TFT LCD WUXGA (1920 x 1200)
1,000 nits LumiBond display with Getac sunlight
readable technology
Storage & Memory

8GB DDR4
Optional: 16GB / 32GB DDR4

256GB PCIe NVMe SSD
Optional: 512GB / 1TB PCIe NVMe SSD
Keyboard

Power button
5 tablet programmable buttons
Pointing Device

Touchscreen
Dual mode touchscreen (multi-touch and digitizer)
Expansion Slot

Optional (top side): 1D/2D imager barcode reader,
or USB 3.2 Gen 1 Type-A port, or USB 3.2 Gen 1 Type-C port,
or LAN port (RJ45), or VGA port i,
or HF RFID reader ii
I/O Interface

FHD webcam x 1 iii
8M pixels auto focus rear camera x 1
Audio in/out combo x 1
DC in Jack x 1
USB 3.2 Gen 2 Type-A x 1
HDMI 1.4 x 1
Optional: SIM card slot x 1 (Micro-SIM, 3FF) iv
Optional: Windows Hello face-authentication camera
(front-facing) x 1 iii
Communication Interface

Intel® Wi-Fi 6 AX200, 802.11ax
Bluetooth (v5.2) v
Optional: Dedicated GPS vi
Optional: 4G LTE mobile broadband with integrated GPS iv, vi
Optional: 10/100/1000 base-T Ethernet
Security Feature

TPM 2.0
Kensington lock
Optional: Intel® vPro® Technology
Optional: HF RFID reader ii
Optional: Windows Hello face-authentication
camera (front-facing) iii
Power

AC adapter (65W, 100-240VAC, 50/60 Hz)
Li-ion battery (11.1V, typical 4200mAh; min. 4080mAh) x 1
Optional: High capacity Li-ion battery (10.8V, 9240mAh) x 1
Dimension (W x D x H) & Weight

276.8 x 194.5 x 23.5 mm (10.89" x 7.65" x 0.92")
1.24kg (2.73lbs) vii
Rugged Feature

MIL-STD-810H certified
IP65 certified
Vibration & 6ft (1.8m) drop resistant viii
ATEX & IECEx certified
Environmental Specification

Temperature ix :
- Operating: -21°C to 63°C / -6°F to 145°F
- Storage: -51°C to 71°C / -60°F to 160°F
Humidity:
- 95% RH, non-condensing
Explosion Protection

ATEX/IECEx Zone 2/22
Ex II 3G Ex ic op is IIC T4 Gc
Ex II 3D Ex ic op is IIIC T130°C Dc
Pre-installed Software

Getac Utility
Getac Camera
Getac Geolocation
Getac Barcode Manager x
Getac Driving Safety Utility (trial version)
Getac KeyWedge Barcode Reader Utility (trial version)
Optional: Absolute Persistence®
Optional software

Getac Driving Safety Utility
Getac KeyWedge Barcode Reader Utility
Getac Device Monitoring System (GDMS)
Getac VGPS Utility xi
Accessories

Battery (11.1V, typical 4200mAh; min. 4080mAh)
AC adapter (65W, 100-240VAC)
Digitizer pen

Optional:
Battery (11.1V, typical 4200mAh; min. 4080mAh)
High capacity Li-ion battery (10.8V, 9240 mAh)
Multi-Bay charger (Dual-Bay)
Multi-Bay charger (Eight-Bay)
AC adapter (65W, 100-240VAC)
Digitizer pen with tether
Anti-static protection film
Hand strap
Shoulder strap (2-point)
Shoulder harness (4-point; handsfree)
100W Type-C adapter

Bumper-to-Bumper Warranty

Accidents can take your equipment out of service
when you least expect it, especially in a rugged
environment, which can cause costly equipment
downtime.
That is why Getac has introduced accidental
damage as standard under our
Bumper-to-Bumper warranty, to help minimize
your enterprise IT costs.
Bumper-to-Bumper is your hassle-free guarantee.
That means you can depend on us to have your
unit back in service within days.

Standard
3 years Bumper-to-Bumper
    • 1D/2D imager barcode reader, Serial port, USB 3.2 Gen 1 Type-A port, USB 3.2 Gen 1 Type-C port, LAN port (RJ45) and VGA port are mutually exclusive options.
    • 13.56MHz contactless HF RFID reader (ISO 15693, 14443 A/B, Mifare and FeliCa™ compliant).
    • FHD webcam and optional Windows Hello face-authentication camera (front-facing) are mutually exclusive options.
    • Units with 4G LTE option come with an embedded SIM card slot.
    • Bluetooth performance and connectable distance may be subject to interference with the environments and performance on client devices, users may be able to reduce effects of interference by minimizing the number of active Bluetooth wireless devices that is operating in the area.
    • Supports GPS and Glonass.
    • Weight and dimensions vary from configurations and optional accessories.
    • Drop test results vary from configurations and optional accessories.
    • Tested by an independent third-party test lab following MIL-STD-810H.
    • Available when barcode reader option is selected.
    • Models require either embedded or standalone GPS module.

Information provided herewith is for reference only, available specification shall be subjected to quotation by request.

UX10-EX ACCESSORIES

DOWNLOAD PDF
HIGH CAPACITY BATTERY 9240 MAH (1-PACK)
STANDARD BATTERY 4200 MAH (1-PACK)
MULTI-BAY BATTERY CHARGER EIGHT BAY
DUAL BAY BATTERY CHARGER
65W AC ADAPTER WITH POWER CORD
100W TYPE-C AC ADAPTER
DIGITIZER PEN WITH TETHER
ANTI-STATIC SCREEN PROTECTION FILM with Glossy Finish
SHOULDER HARNESS 4-POINT
SHOULDER STRAP 2-POINT

Getac Accessory Warranty - 1 year
