Getac X600 Server

Your Fully-Rugged Mobile Command Server
With data exchange, storage, and management capabilities in a fully-rugged notebook, the X600 Server enables mobile command and control.

NATO Stock Numbers (NSN) are available for Getac products
Getac_X600 iF Design Award_Homepage banner_2200x800
Getac_TAIWAN-EXCELLENCE_Product-page-banner_1536x384
Getac_X600-Good-Design-Awards_Homepage-banner_2200x550-1536x384-1

COMMAND & CONTROL IN A BRIEFCASE

A fully-functional commercial off-the-shelf (COTS) mobile server that folds to a slim portable profile. The X600 Server is designed for field agility while retaining comprehensive server capability. It is a fully-rugged and highly-versatile laptop that delivers the capabilities of a cabinet-housed mobile server, deployable in mobile command-and-control scenarios at a moment's notice.
getac

FLEXIBLE RESOURCE ALLOCATION

The X600 Server is capable of hosting multiple independent virtual machine platforms, minimizing your need to invest in multiple server systems. And with its Windows Server 2022 operating system, resources can be allocated flexibly to different virtual systems according to respective user needs. Disk management is enhanced through its hardware-based RAID controller with RAID 5 configuration; providing an optimal balance of capacity, performance, reliability, and security.
getac

BIG DATA ON THE FRONTLINES

X600 Server can be enhanced with hardware-based RAID control for improved data storage flexibility, reliability, and redundancy. X600 Server boosts optional data storage up to 22TB1, a DVD (or optional Blu-Ray) super multi-drive, up to two additional batteries, and both ExpressCard 54 and PCMCIA Type II card readers as standard, all within the chassis, maximizing your device capability without adding to your work surface clutter.

RUGGEDLY DEPENDABLE

X600 Server’s fully-rugged design keeps rain, dust, and extreme temperatures from compromising operability, as does its 15.6-inch sunlight-readable (1,000 nits) display with optional multi-touch capacitive touchscreen, featuring our proprietary LumiBond technology. Under the hood is an Intel® Xeon® 11th-gen processor with 18MB Intel® Smart Cache and up to 4.9GHz Intel® Turbo Boost technology.
getac

ENHANCED DATA SECURITY

X600 Server offers a diverse suite of security features. For data security, Getac Disk Wipe solidifies the permanent irretrievability of stored data, safeguarding your data from reaching unintended or inappropriate parties, all storage drives are user-removable without tools, with the Trusted Platform Module (TPM) 2.0 dedicated microprocessor also included enabling complete drive encryption capabilities, and a variety of other authentication enhancements.

* NIST SP 800-88 Purge is not supported on X600 Server hardware-based RAID.

getac

SUPERIOR CONNECTIVITY

X600 Server integrates seamless with a diverse variety of wired networks, servers, and storage devices. Fixed connectivity includes 2.5G BASE-T Ethernet (x2) for ultra-fast simultaneous connection with multiple servers and/or networks, while onboard Thunderbolt 4 (USB-C) and HDMI 2.0 enable connectivity to additional monitors.

EASY STORAGE DRIVE & BATTERY CHANGEOUT

All X600 Server solid-state storage drives (SSDs) are user-removable and toolless, enabling enhanced data security during device storage, and greater convenience during usage. All batteries are also user-removable without tools, and can be changed out (i.e. hot-swapped) without interrupting device operation.
getac

RUGGED AND READY

Engineered to survive and work in outdoor extremes, X600 Server will operate in rain, dust, shock, and vibration. This fully-rugged laptop is MIL-STD-810H, MIL-STD-461G, and IP66-certified to withstand temperatures from -29°C to 63°C (-20°F to 145°F).

getac
getac
getac

GETAC X600 SERVER FEATURES

Asset Management
Windows Server 2022
Asset Management
LumiBond technology
Asset Management
Up to 22 TB of storage1
Asset Management
Thunderbolt™ 4
Asset Management
2.5G Base-T Ethernet
Asset Management
Operational between -29 °C to +63 °C

Industries Using X600 SERVER

Defense
Oil & Gas

Beyond Expectations

Our new Bumper-to-Bumper fully rugged warranties go beyond the expected to protect your productivity.
getac

Accidents can take your equipment out of service when you least expect it, especially in a rugged environment, which can cause costly equipment downtime. That is why Getac has introduced accidental damage as standard under our Bumper-to-Bumper warranty, to help minimise your enterprise IT costs. Bumper-to-Bumper is your hassle-free guarantee. That means you can depend on us to have your unit back in service within days.

Standard 3 years Bumper-to-Bumper

For full details of the warranty protection, see the Terms and Conditions. 3 Years Warranty

*Images shown are for reference only. Actual product may vary due to product enhancement.
1 Maximum data storage capacity may vary according to device configuration.
Getac_X600-Good-Design-Awards_Homepage-banner_2200x550-1536x384-1
Getac_TAIWAN-EXCELLENCE_Product-page-banner_1536x384

X600 Server TECHNICAL SPECIFICATIONS

Download PDF
Generation

Operating System

Windows Server 2022
Mobile Computing Platform

Intel® Xeon® W-11865MRE vPro® Processor
Max. 4.7GHz with Intel® Turbo Boost Technology
- 24MB Intel® Smart Cache
VGA Controller

Intel® UHD Graphics
Display

15.6" TFT LCD FHD (1920 x 1080)
Protection film
1,000 nits LumiBond display
with Getac sunlight readable technology
Optional: Capacitive multi-touch screen
Storage & Memory

32GB DDR4
Optional: 64GB / 128GB DDR4
1TB Enterprise PCIe SSD
Optional: 2TB Enterprise PCIe SSD
Optional: 2nd Storage:
1TB / 2TB Enterprise PCIe SSD
Optional: 3rd Storage:
1TB / 2TB Enterprise PCIe SSD
Disk management: RAID 5 i
Keyboard

LED backlit membrane keyboard
with integrated numeric keypad
Pointing Device

Touchscreen
- Optional: Capacitive multi-touch screen
Touchpad
- Touchpad with two buttons
Expansion Slot

Smart card reader
Optional: ExpressCard 54 + PCMCIA Type II ii
Optional: 2nd ExpressCard 54
or 2nd PCMCIA Type II iii
Optional: SD card reader
Multimedia Bay

Optional: DVD super multi drive ii, iv
or Blu-Ray super multi drive iv
X Bay

Optional: Enterprise SATA SSD 4TB (1TB x 4) maximum
expandable to 16TB (2TB x 8)
Disk management: RAID 0, RAID 1, RAID 5
I/O Interface

5M webcam x 1
Thunderbolt™ 4 Type C xvii x 1
USB 3.2 Gen 2 Type-A x 4
LAN (RJ-45) x 2
Audio in/out combo x 1
DC in Jack x 1
HDMI 2.0 x 1
Display port x 1
Serial port (9-pin; D-sub) x 1
External VGA (15-pin; D-sub) x1 or 2nd
serial port (9-pin; D-sub) x 1 v
Optional: 3rd Serial port (9-pin; D-sub) x 1 ii
Communication Interface

2.5GBASE-T Ethernet
Security Feature

TPM 2.0
Kensington lock
Smart card reader
Intel ® vPro ® Technology
Getac Disk Wipe xvi
Power

AC adapter (230W, 100-240VAC, 50/60Hz)
Battery (10.8V, typical 6900mAh; min. 6600mAh) x 2
Optional: Battery (10.8V, typical 6900mAh;
min. 6600mAh) x 2 ii
Dimension (W x D x H) & Weight

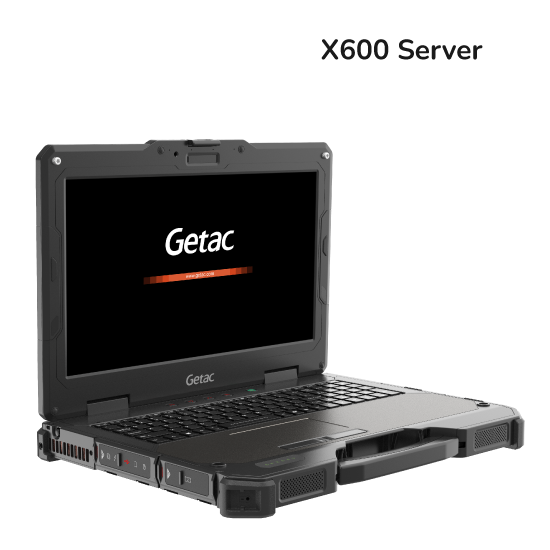

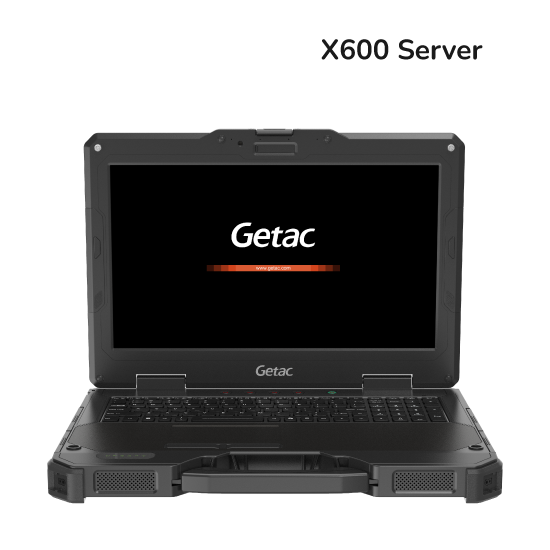

X600 Server:
412 x 322 x 52.5mm (16.22" x 12.68" x 2.07") vii
4.41kg (9.72lbs) vi, vii

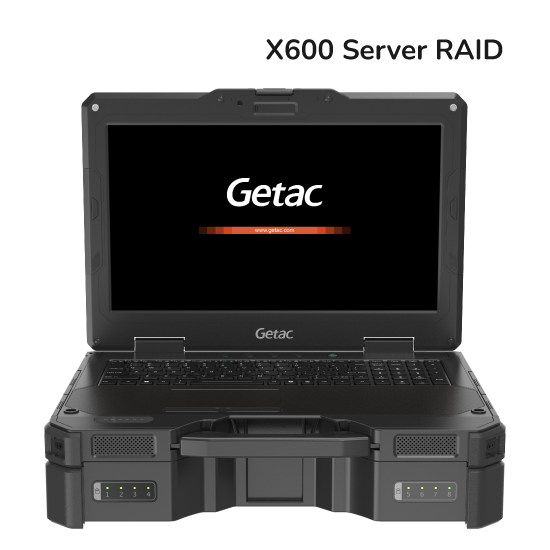

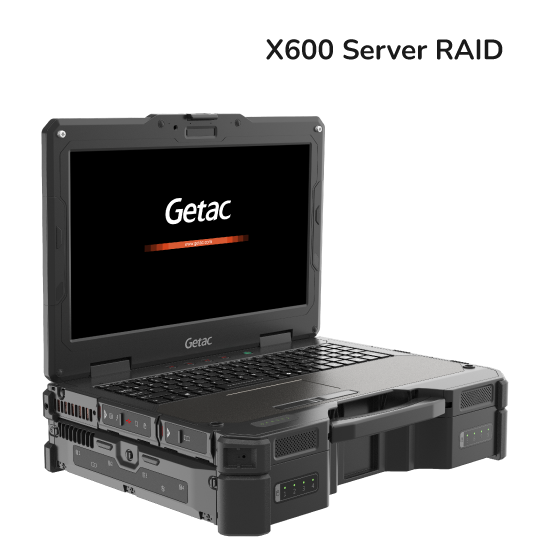

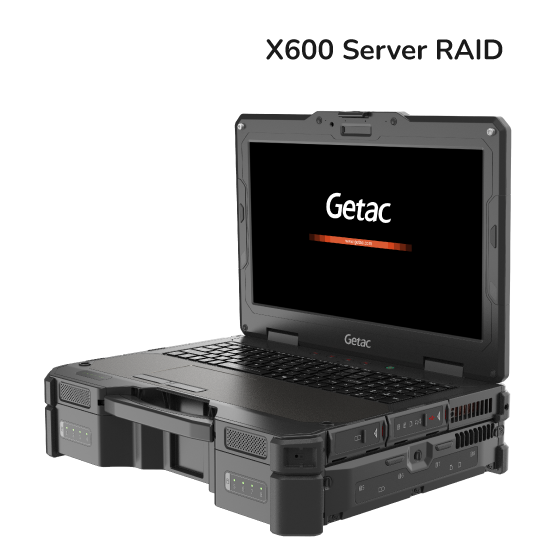

X600 Server RAID:
412 x 322 x 108.8mm (16.22" x 12.68 x 4.28") viii
8.51kg (18.76lbs) vi, viii
Rugged Feature

MIL-STD-810H certified
IP66 certified
MIL-STD-461G certified ix
Vibration and 3ft (0.9m) drop resistant x
Environmental Specification

Temperature xi :
- Operating: -29°C to 63°C / -20°F to 145°F
- Storage: -51°C to 71°C / -60°F to 160°F
Humidity:
- 95% RH, non-condensing
Pre-installed Software

Getac Utility
Optional: Absolute Persistence®
Accessories

Battery (10.8V, typical 6900mAh;
min. 6600mAh) x 2 xii
AC adapter (150W, 100-240VAC, 50/60Hz) xii
Capacitive stylus with tether

Optional:
Backpack
Battery (10.8V, typical 6900mAh; min. 6600mAh)
Multi-Bay charger (Dual-Bay)
Multimedia bay DVD super multi drive ii, iv
Multimedia bay Blu-Ray super multi drive iv
AC adapter (150W, 100-240VAC, 50/60Hz) xiii
AC adapter (230W, 100-240VAC, 50/60Hz)
MIL-STD-461 AC adapter (230W, 100-240VAC) ix
Capacitive stylus with tether
Protection film
DS100 USB-C docking station
Spare SSD kit xiv
X-Bay SSD kit xv

Bumper-to-Bumper Warranty

Accidents can take your equipment out of
service when you least expect it, especially in a
rugged environment, which can cause costly
equipment downtime. That is why Getac has
introduced accidental damage as standard
under our Bumper-to-Bumper warranty, to help
minimize your enterprise IT costs. Bumper-toBumper
is your hassle-free guarantee. That
means you can depend on us to have your unit
back in service within days.

Standard
3 years Bumper-to-Bumper
    • RAID 5 configuration will require 3 storages for X600 Server without RAID.
    • Default spec in the X600 Server RAID
    • The 2nd ExpressCard 54 and the 2nd PCMCIA Type II card readers are mutually exclusive.
    • DVD super multi drive and Blu-Ray super multi drive are mutually exclusive.
    • The 2nd Serial port is optional and mutually exclusive with External VGA.
    • Weight and dimensions vary from configurations and optional accessories.
    • Dimension for X600 Server
    • Dimension for X600 Server RAID.
    • MIL-STD-461 230W sold separately.
    • X600 Server without RAID can withstand 4ft drop.
    • Tested by an independent third-party test lab following MIL-STD-810H.
    • X600 Server RAID comes with 4 batteries and an AC adapter (230W, 100-240VAC, 50/60Hz).
    • 150W AC Adapter is compatible with X600 Server.
    • Spare SSD Kit is an enterprice PCIe SSD. Compatible with X600 Server and X600 Server RAID.
    • X-bay SSD Kit is an Enterprise SATA SSD. Compatible with X600 Server RAID.
    • NIST SP 800-88 Purge is not supported on X600 Server hardware-based RAID
    • Does not support USB power delivery.

Information provided herewith is for reference only, available specification shall be subjected to quotation by request.

Getac_X600-Good-Design-Awards_Homepage-banner_2200x550-1536x384-1
Getac_TAIWAN-EXCELLENCE_Product-page-banner_1536x384

X600 SERVER ACCESSORIES

DOWNLOAD PDF
BACKPACK
EXTERNAL DUAL BAY BATTERY CHARGER
SPARE MAIN BATTERY
230W AC ADAPTER
230W MIL-STD-461 AC ADAPTER
CAPACITIVE STYLUS PEN & TETHER
GETAC DS100 USB-C DOCKING STATION
LCD SCREEN PROTECTION FILM
SPARE MAIN STORAGE
X-BAY SSD KIT
BLU-RAY SUPER MULTI DRIVE
DVD SUPER MULTI DRIVE
150W AC ADAPTER

Getac Accessory Warranty - 1 year
